TWH
7G、9G、10G、12G、14G、16G
52, 72, 80 Inch
Two system or Three system
Controlled by servo-motor with 64 sections optional, max speed reach 1.5m/s. The serve motor combines precise feedback control system with high-speed digital motor combines precise feedback control system with high-speed digital output.
Jacauard, hanging eyes,flipping needles, same mouth weaving and hanging, same mouth flipping, picking holes, visible and hidden needles, etc.
| Quantity: | |
|---|---|
Product Description
Specification
Gauge | 7G、9G、10G、12G、14G、16G |
Knitting width | 52, 72, 80 Inch |
Knitting system | Two system or Three system |
Knitting speed | Controlled by servo-motor with 64 sections optional, Max 1. 5M/SThe serve motor combines precise feedback control system with high-speed digital motor combines precise feedback control system with high-speed digital output. |
Knitting function | Jacquard, hanging eyes, flipping needles, same mouth weaving and hanging, same mouth flipping, picking holes, visible and hidden needles, etc. |
Racking | Controlled by servo-motor racking within 2 inches and with fine adjusting function. |
Stitch density | Controlled by stepping motor, 64 section stitch select-able adjustable scope supported by subdivision technology: 0-500, the stitch of the knitwear can be accurately controlled. |
Hanging Function | Triangle composite design, capable of performing weaving, lifting, and non wea-ving functions at the same mouth, thereby improving production efficiency. |
Transfer system | Triangle composite design, capable of performing needle flipping and joining functions at the same mouth, thereby improving production efficiency. |
Take-down system | Infrared alarm, computer programs instruction, stepper motor control, 64-stagetension selection with an adjustable range between 0-100. |

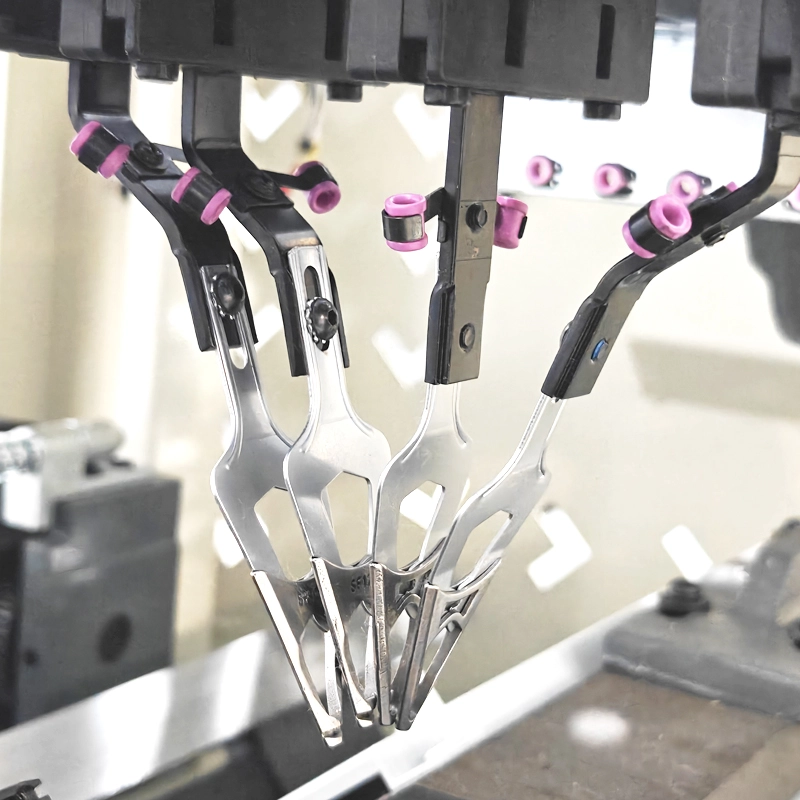

Color-changing system | 2x8 yarn feeders on each side of 4 guide rails, shift able on any needle position. |

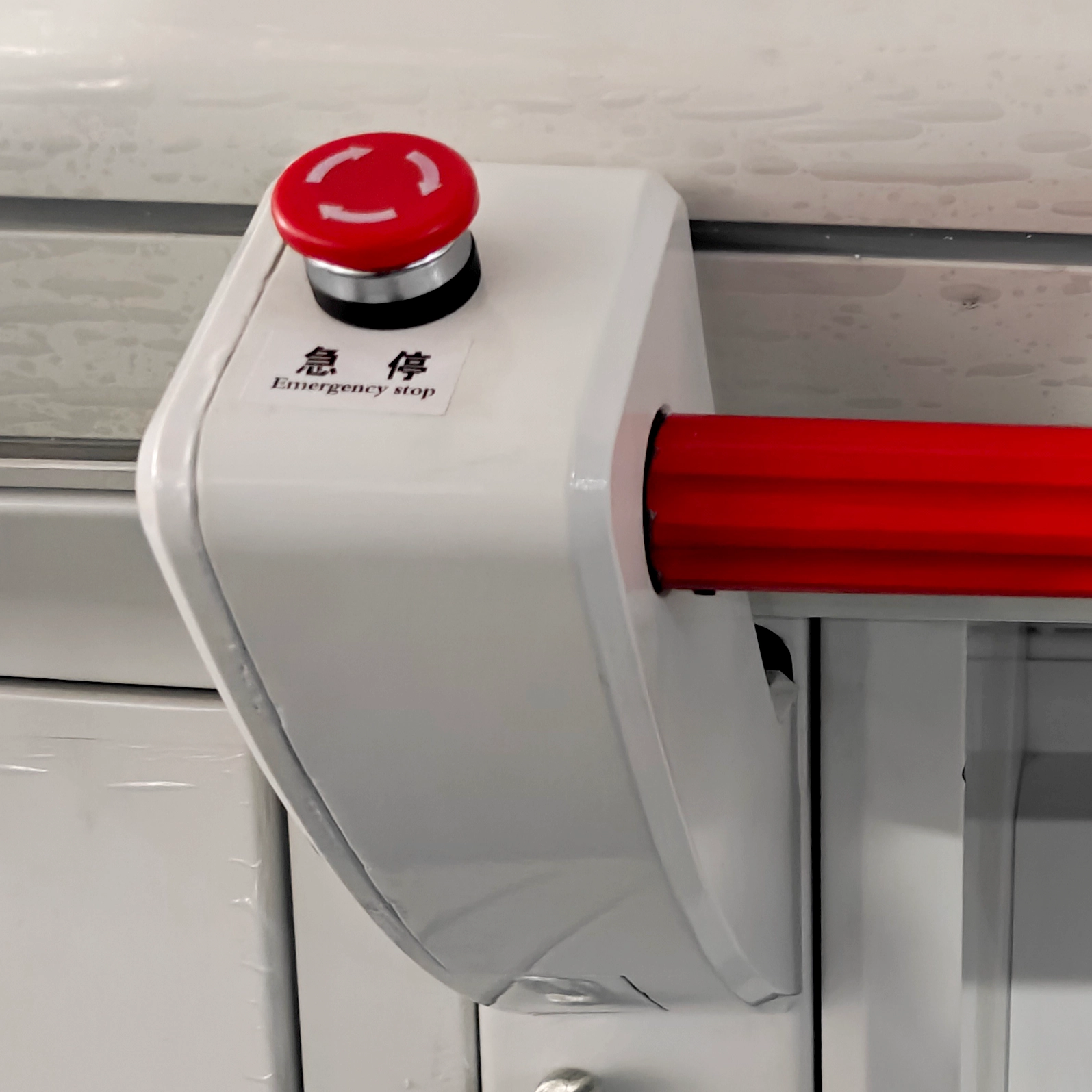

Protection system | The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device. |

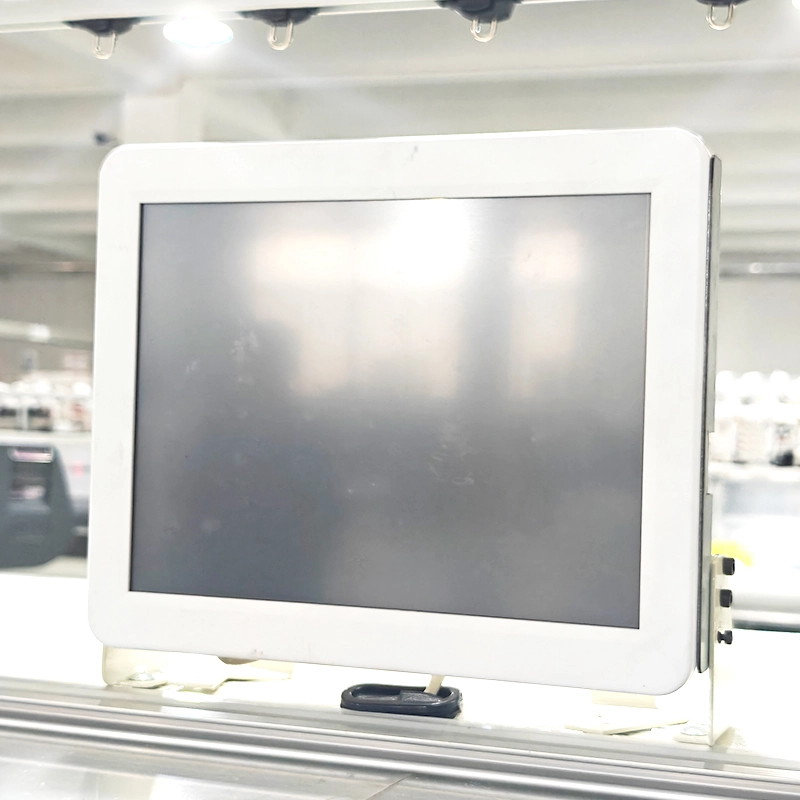

Control system | 1. LCD industrial display, can display various parameters, which can be adjustable during operation. 2.USB memory interface, System memory 2G. 3.Free design system is visual and easy to understand and software upgrade free of charge. 4.Support multi-language operation as Chinese and English, Spanish, Russian etc. |
Network function | High speed network can coordinate up to 250 machines; the knitting data can be uploaded downloaded and shared. |
Power supply | Single-phase 110/220V/three-phase 380V, adopt advanced CMOS technology, having memorizing function at power shock stop. |
Volume and weight | 52inch:2480*800*1700mm (bare pager) 2970*940*1900mm (wooden case) |
Changhua Factory
Changshu Changhua Smart Manufacturing Technology Co., Ltd. is located in Changshu, Jiangsu, the birthplace of the clothing industry. It is a professional large-scale knitting garment machinery manufacturer, which has been developing for more than 20 years, with independent research and creation.
