TWH
300mm
Install power 100W/Spindle, and 65W Consumed
Up to 800m/minute
2/4/6/12/48/60/72 as order
Cotton, cashmere, wool, silk, fiber/NE6-180
| Quantity: | |
|---|---|

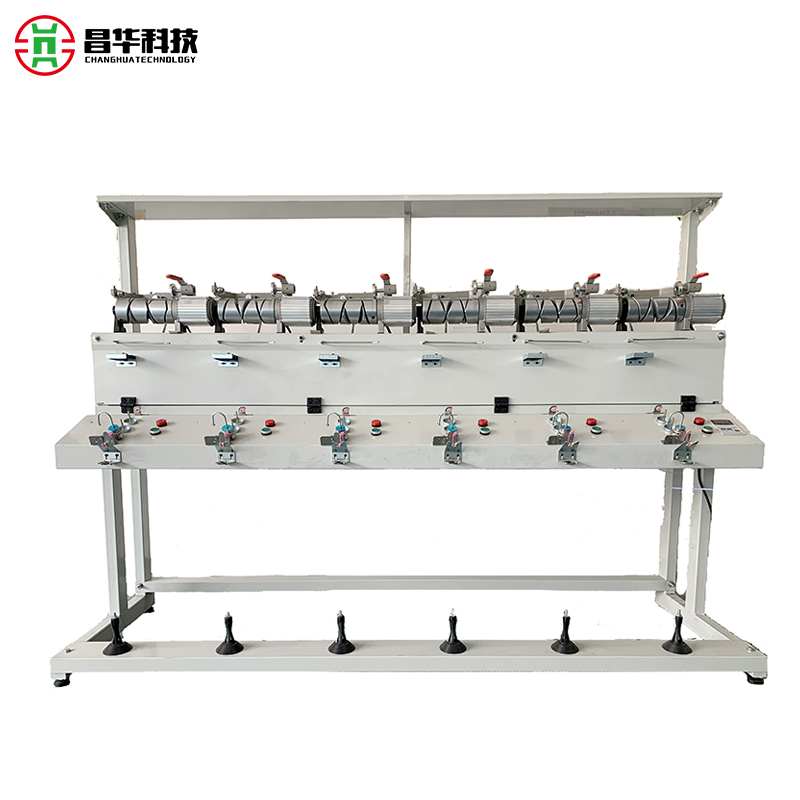

Product Description

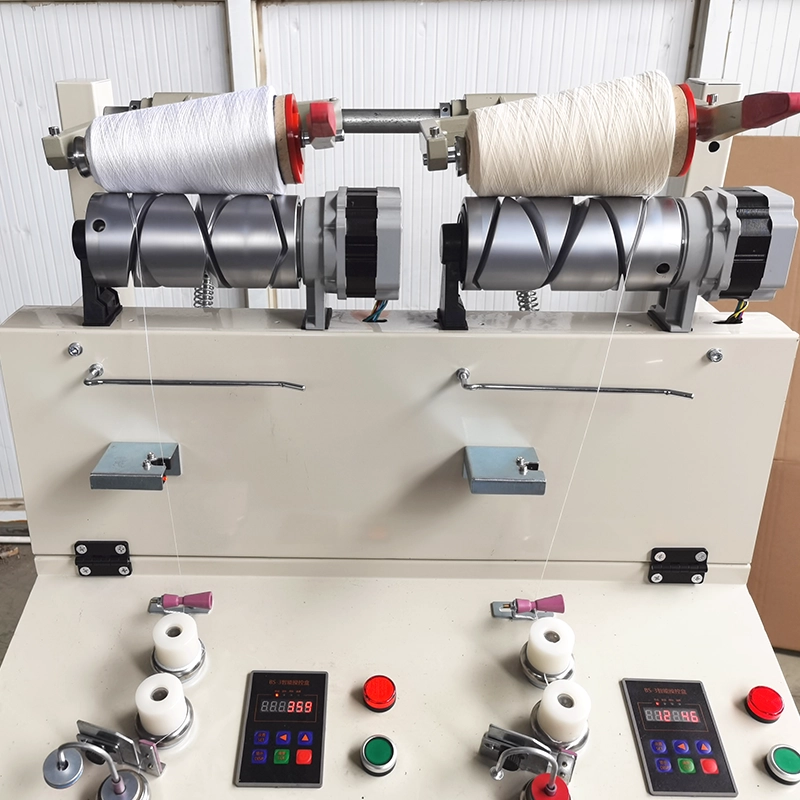

1. Vertical winder path with no inflection point litle friction and less hairiness.lt is approriate or high speed waxing winding.The speed of waxing is twice as much as that of traditional table type.
2. Using brushless DC motor with longer axis,it is convenient to adjust the speed of each unit spindle. Friendly define the speed of each spindle to apply for variety yarn.

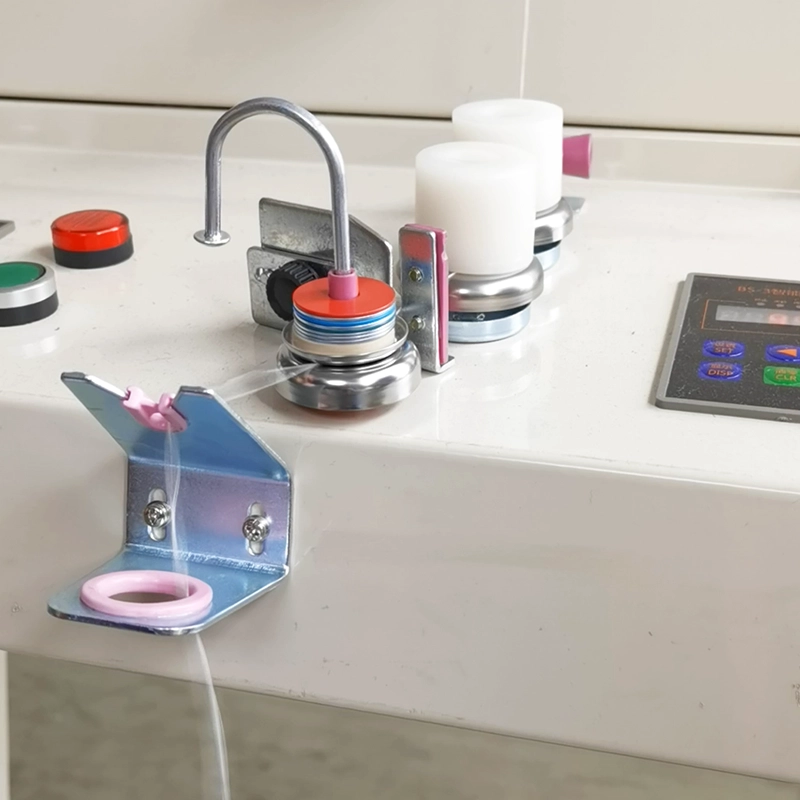

3. Double points waxing system with micro motors, waxing steady and uniform.The forming of cheese is better.

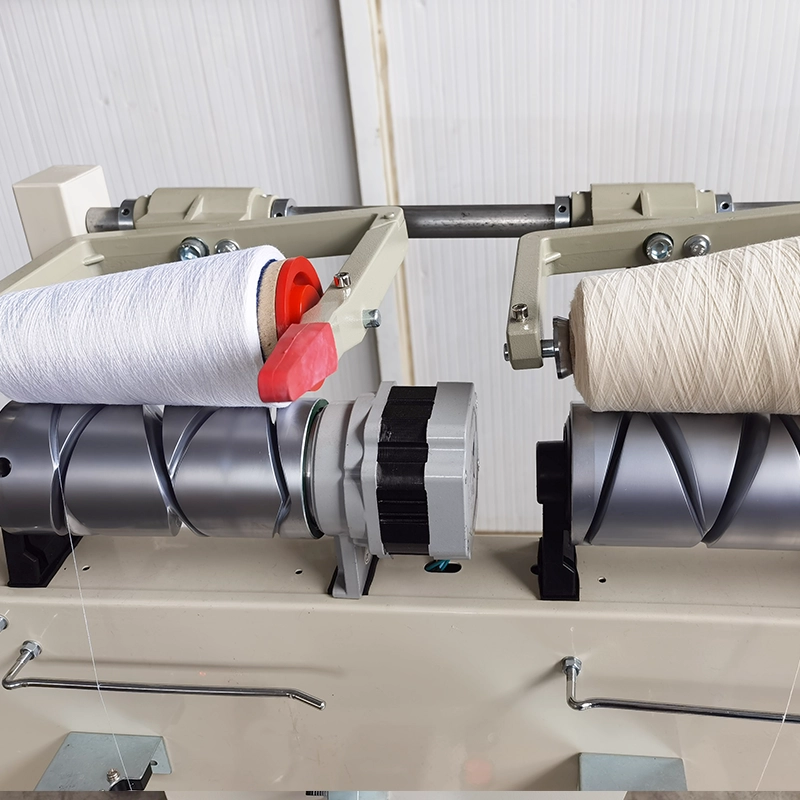

4. Using high qualit alloy drums with optimized groove shape,which has the advantages of good anti-overlapping characteristics, light weight good wear resistance and static elimination.
5. Single winding motor control for each spindle, electronic fixed-length, and single spindle automatic stop while yarn breakage or fully filled.
6. High speed creel with gas spring, which can keep constant winding pressure.This creel is stable andreliable.
Specification
Type of Rewinding | Drum Random | ||||
Customized Spindle Number | 2/4/6/12/48/60/72 as order | ||||
Machine Speed | Up to 800m/minute | ||||
Package Shape | Cylindrical or conical | ||||
Traverse length | 150mm/ 152mm /154mm | ||||
Way of Anti-overlapping | By electronic | ||||
Package Bobbin | 0'/ 3°30”/420”/557”/915” | ||||
Package Density | Up to D290MM | ||||
Package Weight | 0.2-0.4G/CM3 | ||||
Yarns /Count | Cotton, cashmere, wool, silk, fiber/NE6-180 | ||||
Winding Capacity Per Cone | UP To 3Kgs | ||||
Gauge | 300mm | ||||
Machine layout | Vertical one sided /double sided | ||||
Driver Mode | DC Motor, adjustable and individual | ||||
Power Consumption | Install power 100W/Spindle, and 65W Consumed | ||||

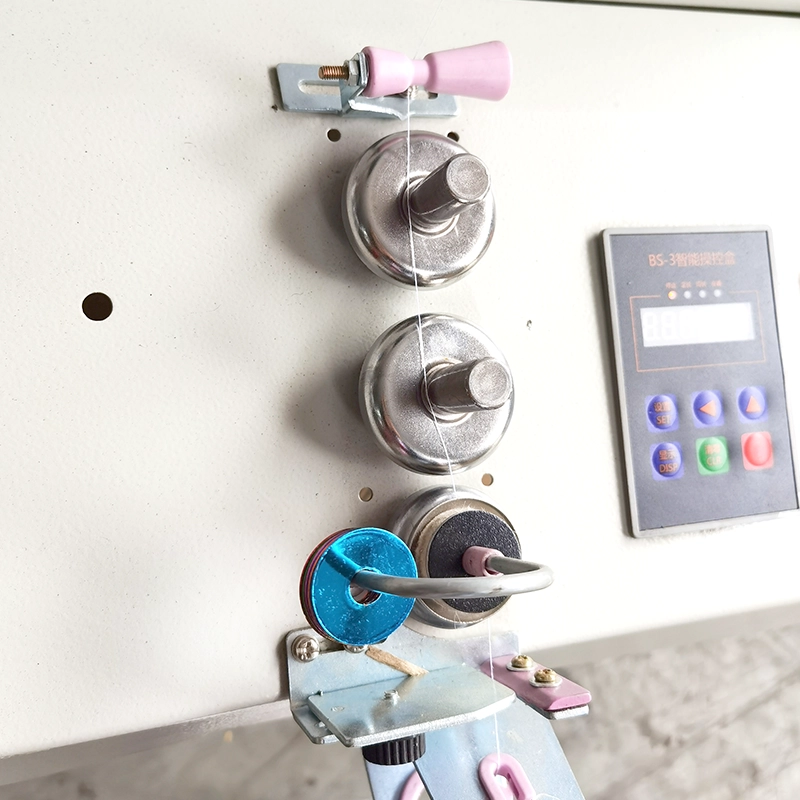

Tension/Wax System | Yarn tension and waxing Device per spindle | ||||
Automatic Stop If Breakage | Automatic type | ||||

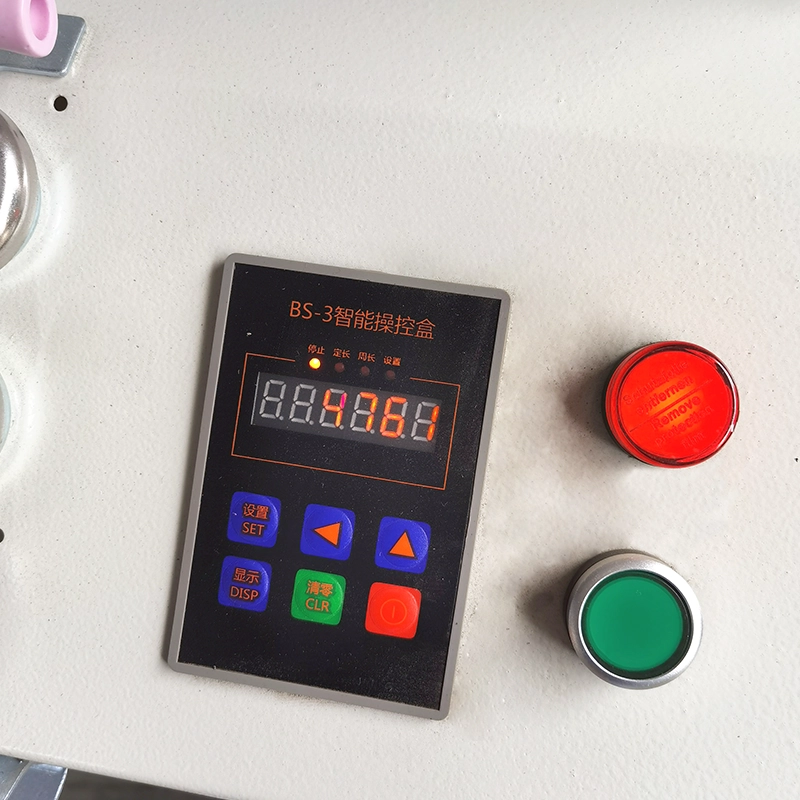

Length Fixing | Adjustable Max 999999m | ||||
Balance | The winding force can be control by balance of gas spring | ||||
Slow Start Mode | Available | ||||
Vacuum Dust Clearing System | Non | Yes | Non | Non | Non |
Air Splicer | Option | Yes | Option | Option | Option |
Hank Yarn Wheel | Non | Yes | Yes | Non | Non |
Dimensions | 2 Spindle L730*W710*H1500mm 4 Spindle: L1390*W710*H1500mm 6Spindle L2050*W710*H1510 mm 12 Spindle L2050*W1450*H1510 mm | ||||
Weight | 2 Spindle: 55kgs 4 Spindle: 100 Kgs 6 Spindle: 155Kgs 12 Spindle: 295Kgs | ||||
Rated Power | Single phase 220V 50/60HZ | ||||
Power Consumption | 52inch:2480*800*1700mm (bare pager) 2970*940*1900mm (wooden case) | ||||
